HOSE-REELS FOR HIGH PRESSURE
ELECTRIC MOTOR

 Catalogue
Hose-reels
for high pressure
catalogue
Electric motorized hose-reels, with neutral to make easier the unrolling of the hose

Supplied without hose, upon request can be delivered and installed the hose required

  • Working pressure from 250 BAR (up to 660 BAR upon request)
  • Strong frame in polyester powder coated steel UV resistant
  • In and Out connections from min. 1/2" up to 1" max (up to 3” upon request)
  • Straight or 90° swivel joints in brass or steel suitable for passage of all kinds of fluids, air and steams
  • In conformity with EC rules
  • Ability to custom design
  • Made in Italy Made in Italy



Hose-reels on bearings equipped with 12 or 24 volt (220 or 380 V upon request) electric motor with neutral suitable for passage of liquids, steams and air used in the agricultural field and primarily for treatments in greenhouses, for fire-extinguishing systems and anywhere the easy and sure rewinding of very long hoses is needed.

Modello: MAGNUM ''E''
Max Pressure: 250 BAR
Reccomended hose 70 / 110 / 160 / 200 mt - Ø 3/8
Type: Electric motor

Scheda Tecnica Datasheet
MAGNUM ''E''		 Modello 3D 3D Model   Nuova versione New
version
  MAGNUM ''E''

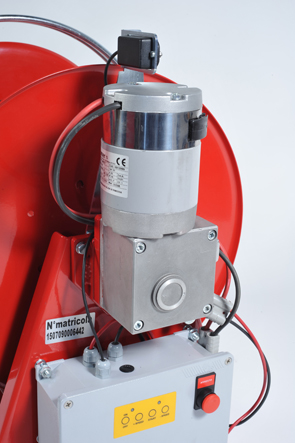

ITA: guidatubo (di serie) <br> ENG: hose-guide (standard) ITA: motore elettrico "E" 12-24 V <br> ENG: electric motor "E" 12-24 V
ITA: frizione <br> ENG: clutch ITA: Motore elettrico 220-380V (optional) <br /> ENG: Electric motor 220-380V (optional)
ITA: manovella (opzionale) <br /> ENG: lever (optional)

Modello: MAGNUM 'GTE'
Max Pressure: 250 BAR
Reccomended hose 160 mt - Ø3/8
Type: Electric motor with automatic hose-guide

Scheda Tecnica Datasheet
MAGNUM 'GTE'		 Modello 3D 3D Model   Nuovo Modello New
Model
  MAGNUM 'GTE'
ITA: guidatubo automatico <br> ENG: automatic hose-guide ITA: uscita tubo su 2 lati <br> ENG: hose issue on 2 sides
ITA: manovella (opzionale) <br> ENG: lever (optional) ITA: motore elettrico "E" 12-24 V <br> ENG: electric motor "E" 12-24 V
ITA: frizione <br> ENG: clutch ITA: Motore elettrico 220-380V (optional) <br /> ENG: Electric motor 220-380V (optional)
ITA: tendi-catena <br> ENG: chain tightener

Modello: MAGNUM ''ET''
Max Pressure: 250 BAR
Reccomended hose 100 / 150 / 200 mt - Ø 3/8
Type: Electric motor with automatic hose-guide with remote control

Scheda Tecnica Datasheet
MAGNUM ''ET''		 Modello 3D 3D Model   Nuova versione New
version
  MAGNUM ''ET''
ITA: uscita tubo su 2 lati <br> ENG: hose issue on 2 sides ITA: guidatubo automatico<br> ENG: automatic hose-guide
ITA: Motore elettrico 12 - 24V <br /> ENG: Electric motor 12 - 24V ITA: Antenna <br> ENG: Antenne
ITA: comandi manuali <br> ENG: manual control ITA:Telecomando <br /> ENG: Remote controller
7. ITA: tendi-catena <br> ENG: chain tightener ITA: frizione <br> ENG: clutch
ITA: manovella (opzionale)<br /> ENG: lever (optional) ITA: Motore elettrico 220-380V (optional) <br /> ENG: Electric motor 220-380V (optional)

Modello: MAGNUM GOLIA BABY 'E' - MAGNUM GOLIA 'E'
Max Pressure: 250 BAR
Reccomended hose 50 - 80 mt - Ø 1"
80 - 140 mt - Ø 3/4
230 mt - Ø 1/2
Type: Electric motor

Scheda Tecnica Datasheet
MAGNUM GOLIA BABY 'E' - MAGNUM GOLIA 'E'		 Modello 3D 3D Model   Nuovo Modello New
Model
  MAGNUM GOLIA BABY 'E' - MAGNUM GOLIA 'E'
ITA: motore elettrico "E" 12-24 V <br> ENG: electric motor "E" 12-24 V ITA: frizione <br> ENG: clutch
ITA: guidatubo (di serie) <br> ENG: hose-guide (standard) ITA: Proteggi dischi (optional) <br> ENG: Protect disks (optional)
ITA: Motore elettrico 220-380V (optional) <br /> ENG: Electric motor 220-380V (optional) ITA: manovella (opzionale) <br /> ENG: lever (optional)
